Al Z. Heimer Posted June 1, 2017 Report Share Posted June 1, 2017 Post 19 in that thread shows S6 and what spider connection looks like. I stand somewhat corrected in my post. Spiders are little metal pieces that plug into the connectors. Hope you get it sorted. Quote Link to comment Share on other sites More sharing options...
hiro Posted June 1, 2017 Report Share Posted June 1, 2017 3 hours ago, Tonik said: That is it, dunno the exact reason. I think its just easier to buss them together and get a good ground. They are frequently the source of problems. My previous Kaw melted one once It's possible for two different ground points to have a difference in voltage between them. In that case, they are not both zero volts like we would assume. But, yeah, I don't see how that would be a big deal on a motorcycle. Maybe for the ECU? (You could look up "ground loops" and "star ground" if you feel like surfing. heh) Quote Link to comment Share on other sites More sharing options...
Popular Post Howabusa Posted June 1, 2017 Author Popular Post Report Share Posted June 1, 2017 (edited) IT IS FIXED! It was the spider ground. I pulled it apart, cleaned it, and greased it up with some dielectric. The bike started and runs with no weird lights on. Thank you for all the help! You guys are the best! OR rocks! Edited June 1, 2017 by Howabusa 5 Quote Link to comment Share on other sites More sharing options...
Tonik Posted June 1, 2017 Report Share Posted June 1, 2017 3 minutes ago, Howabusa said: IT IS FIXED! It was the spider ground. I pulled it apart, cleaned it, and greased it up with some dielectric. The bike started and runs with no weird lights on. Thank you for all the help! You guys are the best! OR rocks! Damn happy for you dude. See u next week. 1 Quote Link to comment Share on other sites More sharing options...
2talltim Posted June 1, 2017 Report Share Posted June 1, 2017 Sweet! Quote Link to comment Share on other sites More sharing options...
motocat12 Posted June 1, 2017 Report Share Posted June 1, 2017 VFRs use these solid metal microchip jumper looking spider- things to cause their ground issues. making it into 1 ball of solder fixes it 1 Quote Link to comment Share on other sites More sharing options...
hiro Posted June 1, 2017 Report Share Posted June 1, 2017 6 hours ago, Howabusa said: IT IS FIXED! It was the spider ground. I pulled it apart, cleaned it, and greased it up with some dielectric. The bike started and runs with no weird lights on. Thank you for all the help! You guys are the best! OR rocks! That's some good work! Now you're that much better at electrical problems. A few times my car's dash would go mad, the radio would cut out, and ultimately the engine would not start. Traced it to a corroded ground and battery terminals. One time I sunk an old car in a puddle. It was completely dead after that. I should've thought to check the ground and starter motor for corrosion or shorting. That was an old AMC Gremlin. heh 1 Quote Link to comment Share on other sites More sharing options...
Qman Posted June 1, 2017 Report Share Posted June 1, 2017 4 minutes ago, hiro said: That's some good work! Now you're that much better at electrical problems. A few times my car's dash would go mad, the radio would cut out, and ultimately the engine would not start. Traced it to a corroded ground and battery terminals. One time I sunk an old car in a puddle. It was completely dead after that. I should've thought to check the ground and starter motor for corrosion or shorting. That was an old AMC Gremlin. heh AMC....In most circles that's an acronym for "Ain't My Car"! Quote Link to comment Share on other sites More sharing options...
hiro Posted June 1, 2017 Report Share Posted June 1, 2017 2 hours ago, motocat12 said: VFRs use these solid metal microchip jumper looking spider- things to cause their ground issues. making it into 1 ball of solder fixes it I will probably have nightmares and see that connector any time I close my eyes! And I don't even have a VFR. Quote Link to comment Share on other sites More sharing options...
hiro Posted June 1, 2017 Report Share Posted June 1, 2017 Just now, Qman said: AMC....In most circles that's an acronym for "Ain't My Car"! hehe Definitely true now! I wonder how many people even know the manufacturer. Quote Link to comment Share on other sites More sharing options...
Howabusa Posted August 15, 2017 Author Report Share Posted August 15, 2017 Okay, my spider ground issue has now reappeared twice. I have to pull the left side front fairing off and pull the cap off of the spider ground and grease it up with dielectric grease, that solves it temporarily. The corner of the plastic housing has a black spot, so I am assuming that it is somewhat burned. So, how do I fix this problem permanently? Quote Link to comment Share on other sites More sharing options...
Qman Posted August 15, 2017 Report Share Posted August 15, 2017 Maybe run a direct line from there to the battery negative terminal? Or does it already have one? Quote Link to comment Share on other sites More sharing options...

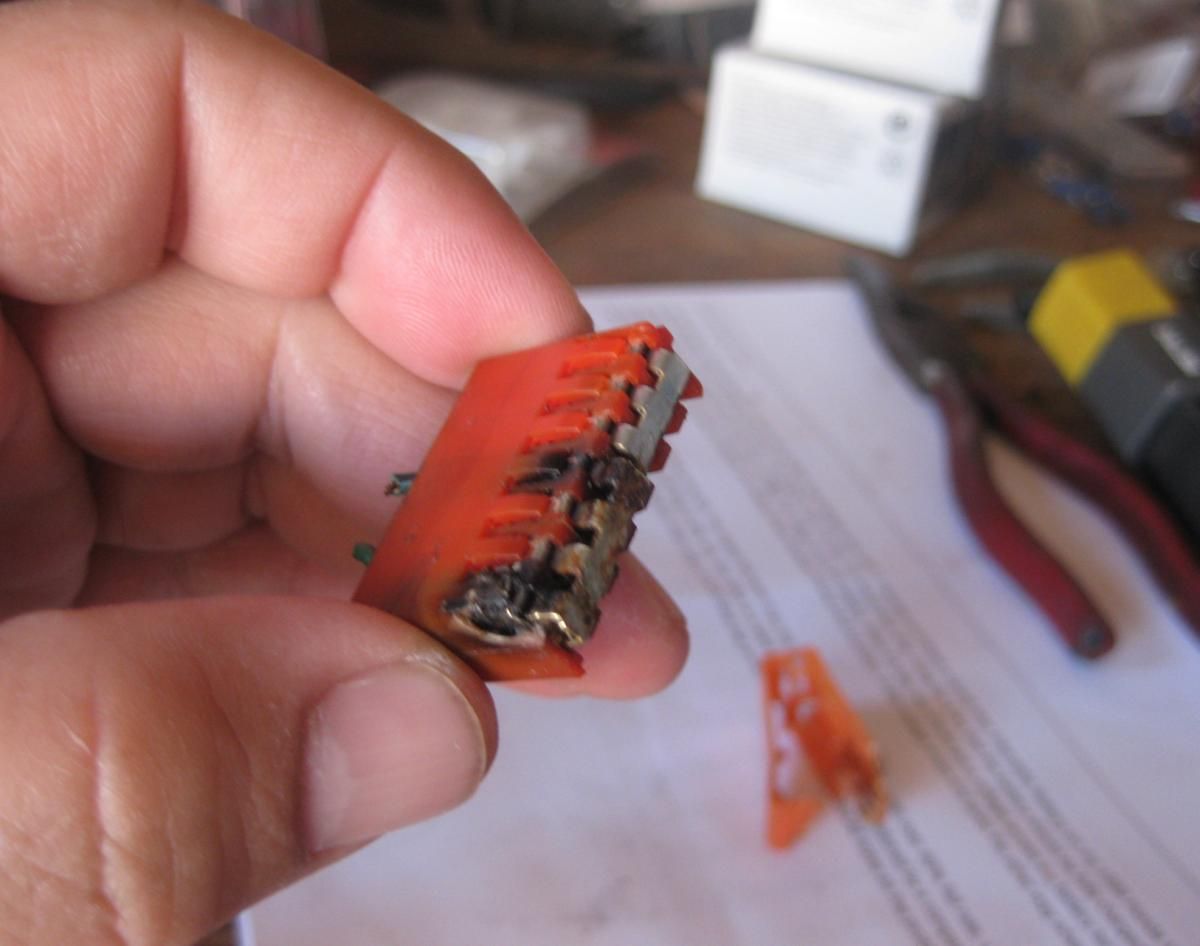

Howabusa Posted August 16, 2017 Author Report Share Posted August 16, 2017 Okay. These ground spiders are known to actually melt. From what I can find there's 6 wires with one being a ground wire. This ground wire is grounding the other 5 circuits. Mine has not melted but there is some scorching inside the plug. I assume that is the ground wire. So that wire's connection is loose. When it quits working I taking the cap off and pull the grounding bar, add some grease and put it together. Fixed. I wonder if the storm that rode through in Kentucky washed the dielectric out. The forum guys say to solder all the wires together and add a wire to run to the negative battery post. Quote Link to comment Share on other sites More sharing options...
Howabusa Posted August 16, 2017 Author Report Share Posted August 16, 2017 1 hour ago, Isaac's Papa said: Beats me, man. Any time I had an Aprilia with electrical issues, I'd just throw Yamaha parts at it until it was fixed. You're down a road for which I have no guidance. Godspeed. You suck! Pauly Quote Link to comment Share on other sites More sharing options...
Howabusa Posted August 16, 2017 Author Report Share Posted August 16, 2017 I have never soldered anything in my life. The only electrical work that do is crimp or plug. I suck! Quote Link to comment Share on other sites More sharing options...
Howabusa Posted August 16, 2017 Author Report Share Posted August 16, 2017 I might give the FJR and a list of shit that needs done to you in a couple months. Quote Link to comment Share on other sites More sharing options...
Tonik Posted August 16, 2017 Report Share Posted August 16, 2017 16 minutes ago, Howabusa said: The forum guys say to solder all the wires together and add a wire to run to the negative battery post. Exactly the same issue on my Nomad 1600 and exactly the same fix. Quote Link to comment Share on other sites More sharing options...
Tonik Posted August 16, 2017 Report Share Posted August 16, 2017 Or use a bus bar. 1 Quote Link to comment Share on other sites More sharing options...
hiro Posted August 16, 2017 Report Share Posted August 16, 2017 57 minutes ago, Howabusa said: I have never soldered anything in my life. The only electrical work that do is crimp or plug. I suck! I enjoy me some solder and heat shrink if you want help sometime. Before October. 2 1 Quote Link to comment Share on other sites More sharing options...
Qman Posted August 16, 2017 Report Share Posted August 16, 2017 Caution using solder: There's a reason you dont see solder in most connections on cars/bikes. Actually 3 reasons. 1. High current can cause the solder to melt. 2. Its brittle, and doesn't like a lot of flexing. 3. Manufacturing efficiencies. I suspect your "spider" ground to be a pretty high current point, so a good mechanical connection is likely better. On the other hand, the good thing about solder, it normally increases the contact area by a huge amount. Quote Link to comment Share on other sites More sharing options...
hiro Posted August 16, 2017 Report Share Posted August 16, 2017 Yeah, the bus bar idea seems solid, but soldered joints should be solid, too. The main reason for not using solder is to be able to disconnect at will. (You could solder on terminals that are then screwed down to the bus bar.) Having a solid connection would reduce internal heat, so as long as the wires are properly sized for the current it should be good. Not sure about heat coming off the engine. If the wires are intertwined, J-hooked, or twisted together before soldering, they shouldn't come apart easily. (It might be interesting, if not totally useless to know, that current tends to travel on the "skin" of a conductor at higher frequencies. It's called the skin effect and it reduces the effective size of the conductor as if it were hollow.) Quote Link to comment Share on other sites More sharing options...
Qman Posted August 16, 2017 Report Share Posted August 16, 2017 30 minutes ago, hiro said: (It might be interesting, if not totally useless to know, that current tends to travel on the "skin" of a conductor at higher frequencies. It's called the skin effect and it reduces the effective size of the conductor as if it were hollow.) I understand the skin effect to happen at low frequencies as well (perhaps to a lesser degree), as the conductor heats up, the outside is cooled faster, and the cooler part of the conductor has less resistance. Quote Link to comment Share on other sites More sharing options...
hiro Posted August 16, 2017 Report Share Posted August 16, 2017 1 hour ago, Qman said: I understand the skin effect to happen at low frequencies as well (perhaps to a lesser degree), as the conductor heats up, the outside is cooled faster, and the cooler part of the conductor has less resistance. Wow. Interesting. And the insulation can also be affected. "...materials that are classed as CONDUCTORS tend to INCREASE their resistance with an increase in temperature. INSULATORS however are liable to DECREASE their resistance with an increase in temperature. Materials used for practical insulators (glass, plastic etc.) only exhibit a marked drop in their resistance at very high temperatures. They remain good insulators over all temperatures they are likely to encounter in use." Quote Link to comment Share on other sites More sharing options...
PhilD'oh! Posted August 16, 2017 Report Share Posted August 16, 2017 I have an '09 FJR that I addressed this issue a long time ago. I ran my own grounds for the fans because they are high load items. Then I installed a "Brodie harness" that connects all the ground spiders together and adds two very good ground paths directly to the engine case. That was over 100,000 miles ago and all-season riding. No spider problems. For you, stop fooling around with the dielectric grease, it doesn't fix the problem. Cut the bad terminal off and solder all 6 wires together along with another 18 ga wire that you can attach to the engine case somewhere. You should also consider grounding the fans separately, like mine. Better yet, just ride up to Toledo next week and I'll fix you up. No charge. 1 2 Quote Link to comment Share on other sites More sharing options...
Qman Posted August 17, 2017 Report Share Posted August 17, 2017 7 hours ago, PhilD'oh! said: I have an '09 FJR that I addressed this issue a long time ago. I ran my own grounds for the fans because they are high load items. Then I installed a "Brodie harness" that connects all the ground spiders together and adds two very good ground paths directly to the engine case. That was over 100,000 miles ago and all-season riding. No spider problems. For you, stop fooling around with the dielectric grease, it doesn't fix the problem. Cut the bad terminal off and solder all 6 wires together along with another 18 ga wire that you can attach to the engine case somewhere. You should also consider grounding the fans separately, like mine. Better yet, just ride up to Toledo next week and I'll fix you up. No charge. Fix it, then apply dielectric grease! Wont hurt! Quote Link to comment Share on other sites More sharing options...
